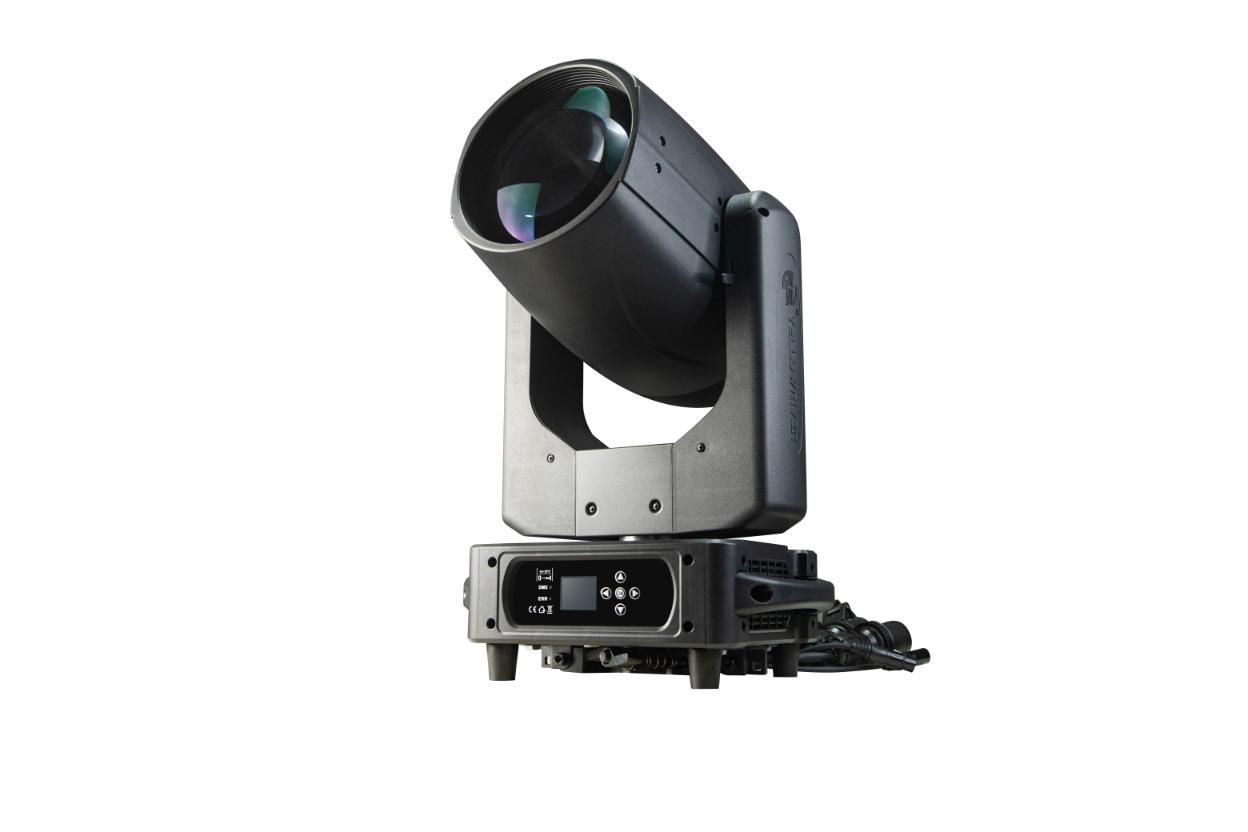

YR-420B is a moving head beam light. The light Angle of the whole lamp is 1.3°, which can achieve focusing and sharp beam. The appearance of the lamp body is simple and atmospheric, which can meet the needs of different places.
Product Specification:
Light source Light source 420W Lifespan 3000 hours Color temperature 7600K Control parameters Optical path lens
combined lens, the light Angle of the whole lamp is 1.3°, which can achieve focusing and sharp beam
Stroboscopic
two-piece stroboscopic 1-30 times/second, support pulse stroboscopic + effect stroboscopic + random stroboscopic
Dimming
Linear dimming
Control signal
DMX512(Digital MultipleX 512)+RDM, in line with international standard light control
Control channel
16/20 channel
Operation mode
console, manual, master-slave, optional DMX512 wireless signal control
Heat dissipation of light source
2pcs 4-line turbine fans + gyroscope control the rotation of the fan at different angles to accurately blow the lamp +2 high-power fans convection air, active heat dissipation, to ensure more stable products.
Color
1pcs color wheel: 14 high-gloss coating colors + white light, linear or step conversion color
Gobo
1 metal gobo plate: 17 gobo + white light, step conversion pattern, with variable speed jitter, two-way variable speed flow effect
Prism
1pcs 8 prism +1pcs 8+16 double-layer honeycomb prism, superimposed to obtain 16+24 double-layer prism, can be independently rotated, with two-way variable speed rotation effect
Six-color wheel
6 high-gloss coating colors, with prism can produce six-color prism effect
Frost
1 independent frost plate, which can convert the beam into dyeing effect
Scanning
horizontal 540 degrees 2.3S/ cycle, vertical 270 degrees 1.2S/ cycle, three-phase motor

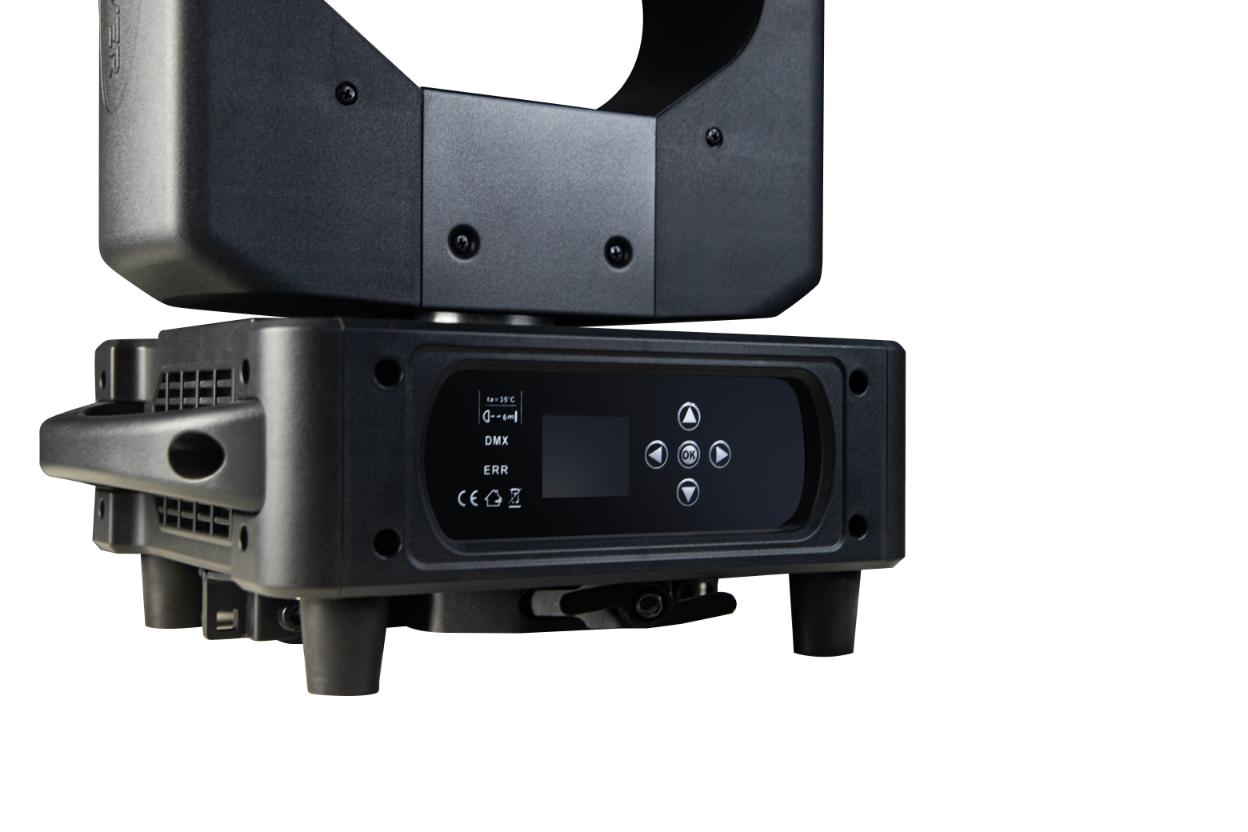

Display function
touch screen, screen can be reversed, switch between Chinese and English, automatic screen off/permanent screen
Over temperature protection
high sensitivity ceramic temperature control full control
Safety protection
Automatically cut off the power supply when the body overheats or the system fails
Working parameters
Operating voltage
AC100V-240V (50/60HZ)
Total rated power
800W
Rated current
3.64A
Power factor
0.99
Maximum ambient temperature
40 degrees
Light parameters
IP rate
IP20
Net weight
18KG
