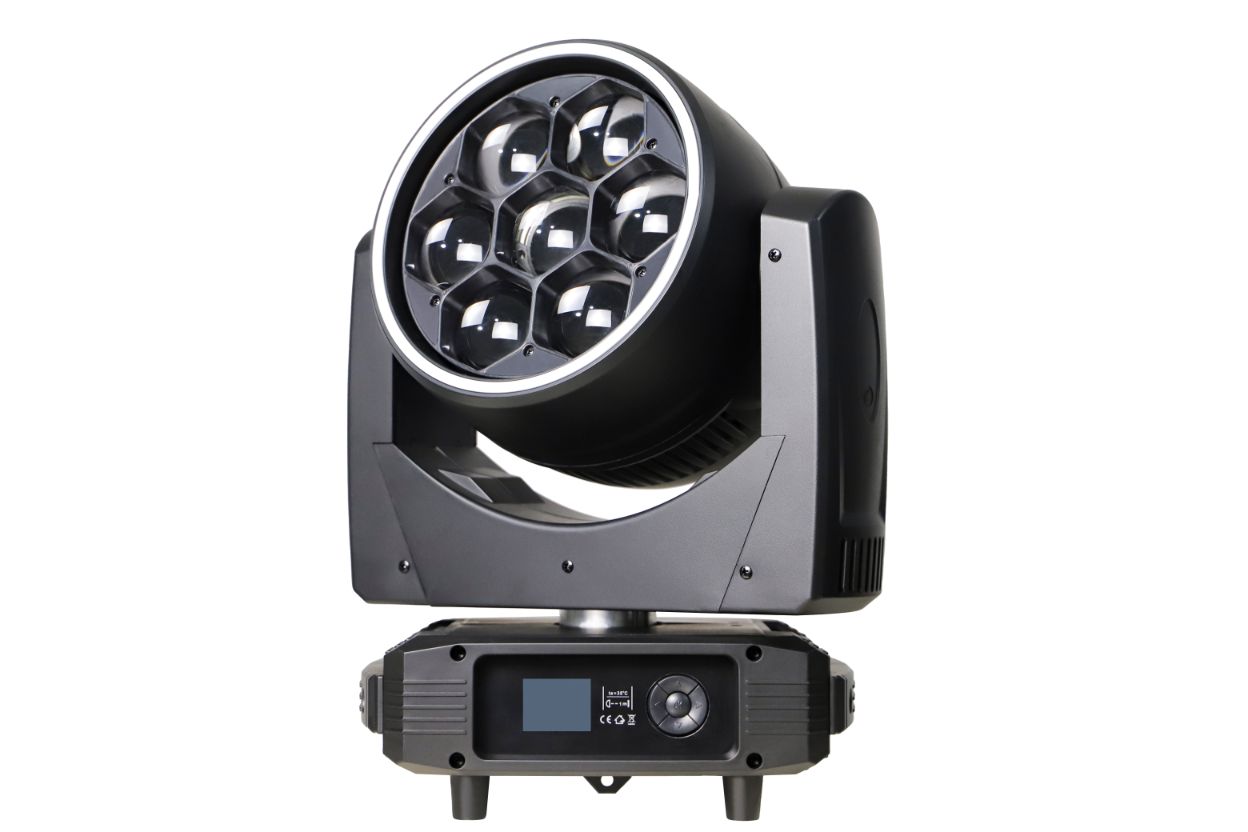

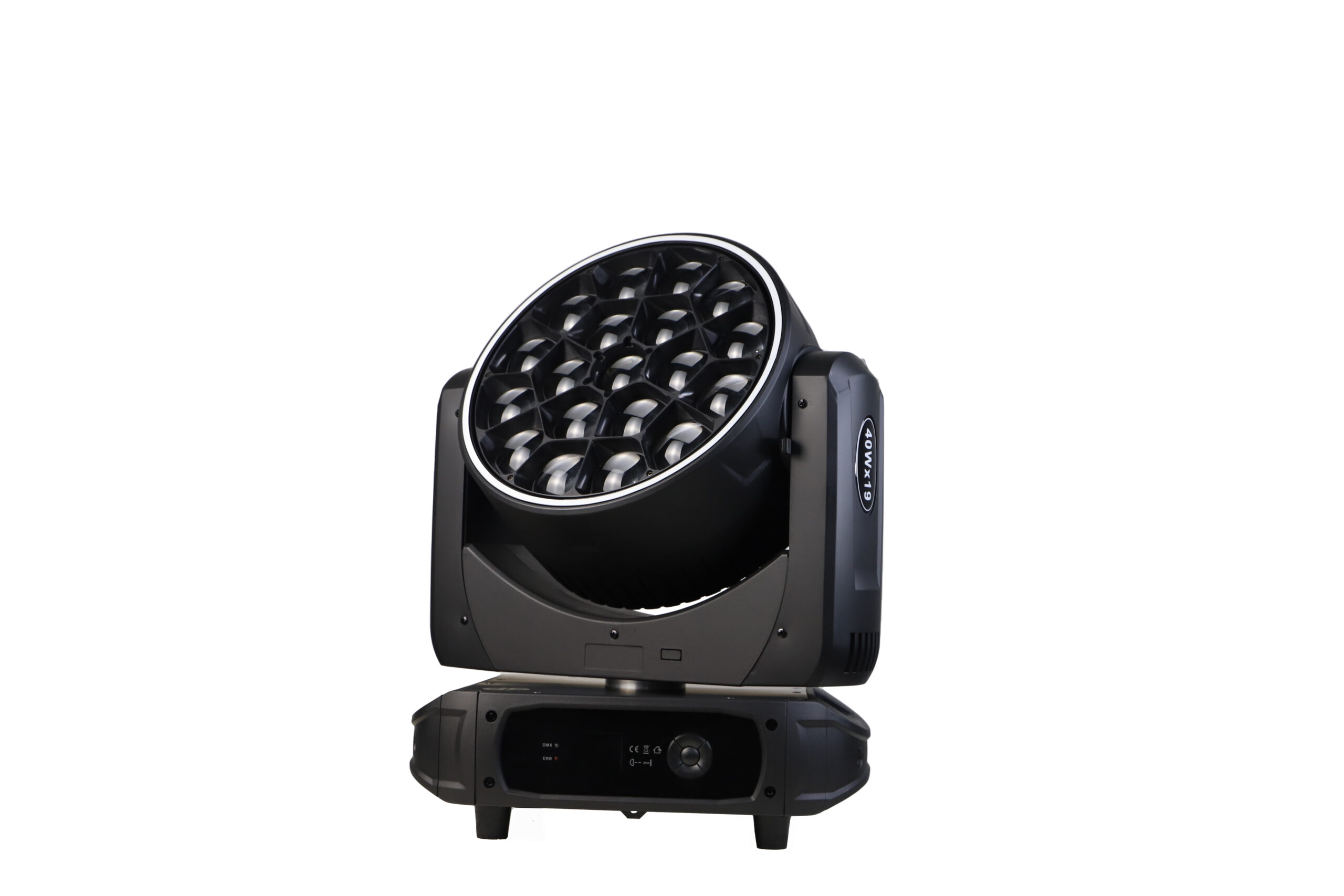

For market demand we released this LED Zoom Moving head with the latest technology. Zoom angle:4°-60°,the pixel LED control and overall LED control present more pattens to meet the customer application. Especially the smooth motor was used, it can rotate fast with low noise. sharpy beam shooted out from the ultra led 40WX19 4IN 1 bring the audience stunning feeling that never experienced from other wash light. High efficiency cooling system and Intelligent speed control fan enables the unit working safely and environmentally friendly. It is very popular in the night show, club and disco market.
Product Specification :
| Electrical | Voltage | AC100V~240V，(50/60HZ) |
| Power Factor | 0.98 | |
| Power Consumption | 860W | |
| Light Source | LED Lifespan | 50000H |
| LED | LED19*40W | |
| Color | RGBW | |
| Optical Path Lens | High Efficiency Light Guide Rod + Honeycomb Lens | |
| Control Parameters | Control Channels | 26 CH/ 36 CH/ 78CH |
| Cooling Way | Intelligent temperature control cooling fan, fan no working under 40℃（104℉）, when above 40℃（104℉）the higher the temperature is , the faster the working speed of fan. | |
| Built-In Effect | - | |
| Optical System | LCD Display Function | 2.0 inch LCD color screen, can set the channel mode (standard/extended/pattern/HSI) horizontal vertical inversion, back screen, signal hint, switch in both Chinese and English, automatic screen off/lasting. Display channel number, light source temperature, fan speed, record start-up time, start-up times, fault detection and control, manual control channel data memory, software version information, restore factory settings, scan and color correction. |
| ZOOM and Beam Angle | Electronic Reset, 4 Degrees --60 Degrees /1.7 Second | |
| Strobe | 0~30Hz, support pulse strobe + random strobe + standard strobe | |
| Scanning | Pan 540 degrees / 1.8s, Tilt 270 degrees/0.9s, three-phased motor, using photoelectric reset with automatic error correction function, the smooth subdivision technology is used which make more smoothly working | |
| Physical | Machine Size | 46*33*46 |
| Machine N.W. | 20.5KG | |
| Housing | Heat-Resisting Engineering Plastic | |
| Running Temp. | Under 40 ℃ | |
| IP Rate | IP20 |
